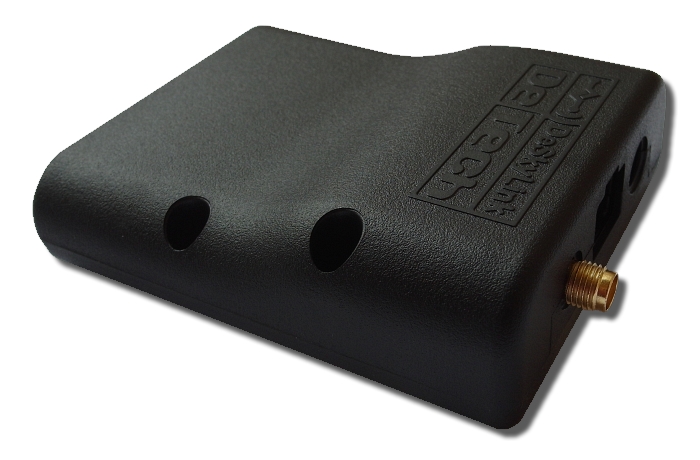

Modem DeSkyLink tipe DSL-T3 adalah modem selular yang didesain berdasarkan spesifikasi yang ada pada SPLN D3.023:2013 untuk menunjang komunikasi pada aplikasi pembacaan meter secara otomatis Automatic Meter Reading (AMR).
Menggunakan wireless engine dari produsen yang handal di bidang penyedia alat komunikasi machine to machine (M2M) dan Internet of Thing (IoT) Telit Communications S.p.A, menjadikan modem DSL-T3 sebagai produk modem selular yang handal dengan pilihan jaringan komunikasi yang luas baik 2G (GSM, GPRS, EDGE) maupun 3G (UMTS, HSPA).
Modem ini dilengkapi dengan Telit IoT Appzone sebagai platform embedded apps berbasis bahasa C. Keberadaan platform berbahasa C ini memungkinkan untuk mengintegrasikan modem dengan berbagai macam protokol komunikasi pada RTU (DLMS, Modbus, DNP3, Baker 8500 dll) maupun protokol komunikasi IoT (MQTT, CoAP, dll).
Konektifitas TCP/IP tersedia dalam pilihan mode plain maupun encrypted via Secured Socket Layer (SSL). Ketersediaan fasilitas SSL bisa dioptimalkan dengan aplikasi embedded DeGateway Lite guna menjadikan komunikasi AMR berjalan pada platform yang aman seperti pada transaksi perbankan.
Manufacturer | R&P Electronics Limited |
---|---|
Wireless Engine | Telit Communications S.p.A |
Air Interface | 2G: GSM/GPRS/EDGE 3G: UMTS/HSPA |
Power Consumption | Standby/Idle: < 2mA
GSM/CSD Max: 220mA |
SMS | Text & PDU mode |
Data Interface | UART – RS232 tipe konektor RJ45 |
DC Power | Round type connector |
Antenna Interface | SMA |
GPIO | 2 independent Control Ouput |
Multifunction LED | Network searching
GSM standby GSM/CSD communication GPRS communication (Opt) Connect to Gateway (Opt) |
Control Options | AT Command, Programmable C language |
Operating System | Telit IoT AppZone |
Data Speed | GSM (Up to 14.4kbps)
GPRS Class 12 (DL: 80kbps UL: 80kbps) EDGE Class 12 (DL: 240kbps UL: 240kbps) UMTS (DL : 384kbps UL : 384kbps) HSPA (DL : 7.2Mbps UL : 5.7Mbps) |
SSL Capability | Support up to TLS V1.2 |
Dimension | 80 x 65 x 23 mm |
Casing | Plastic |
Temperature | -40 to +85°C |
Approval | International: CE (BCTC-FY190603208C)
Indonesia: Postel (55252/SDPPI/2018) |

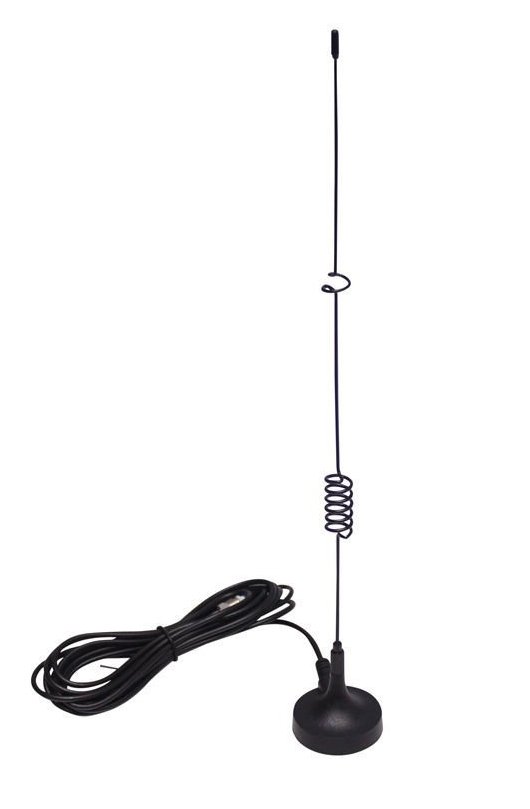

Accessories | Magnetic Pad Antenna (5dBi)

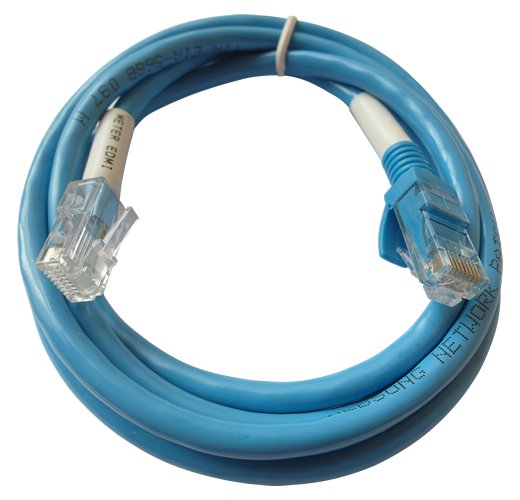

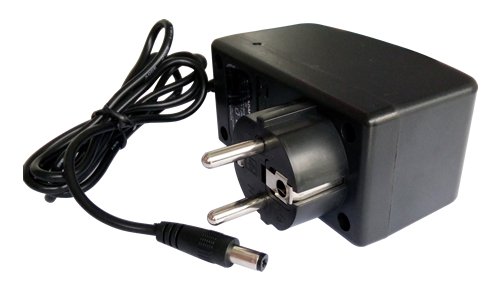

Power Supply Unit with Hard Reset (Opt) Data Cable (PC/Meter) |
Embedded Apps | DeGateway Lite (Optional) |
